RangeTool not working in Jupyter notebook

Hi,
I am trying to use the RangeTool in a Jupyter notebook, but I always get an “Uncaught (in promise) Error: models must be owned by only a single document” error. Here is a minimal code that reproduces the error:

from bokeh.io import output_notebook, show
from bokeh.plotting import figure
from bokeh.models import ColumnDataSource, DatetimeTickFormatter, RangeTool, Range1d
from bokeh.layouts import column
output_notebook()

timestamps = [1, 2, 3, 4, 5]
values = [10, 20, 30, 40, 50]
dummy_data = {'timestamp': timestamps, 'value': values}
source = ColumnDataSource(dummy_data)

x_range = Range1d(start=timestamps[0], end=timestamps[-1])
y_range = Range1d(start=min(values), end=max(values))

select = figure(x_axis_type="linear", x_range=x_range, y_range=y_range, tools="")
range_tool = RangeTool(x_range=x_range)
select.add_tools(range_tool)

select.line(x='timestamp', y='value', source=source)

show(select)

If I comment the line select.add_tools(range_tool), the plot is shown, so I guess the notebook is setup correctly. I work with Bokeh 3.3.0 and JupyterLab 3.6.3 in Firefox. I have tried essentially all the recommendations I could find without success. Any recommendations would be much appreciated.
Thanks, Kurt

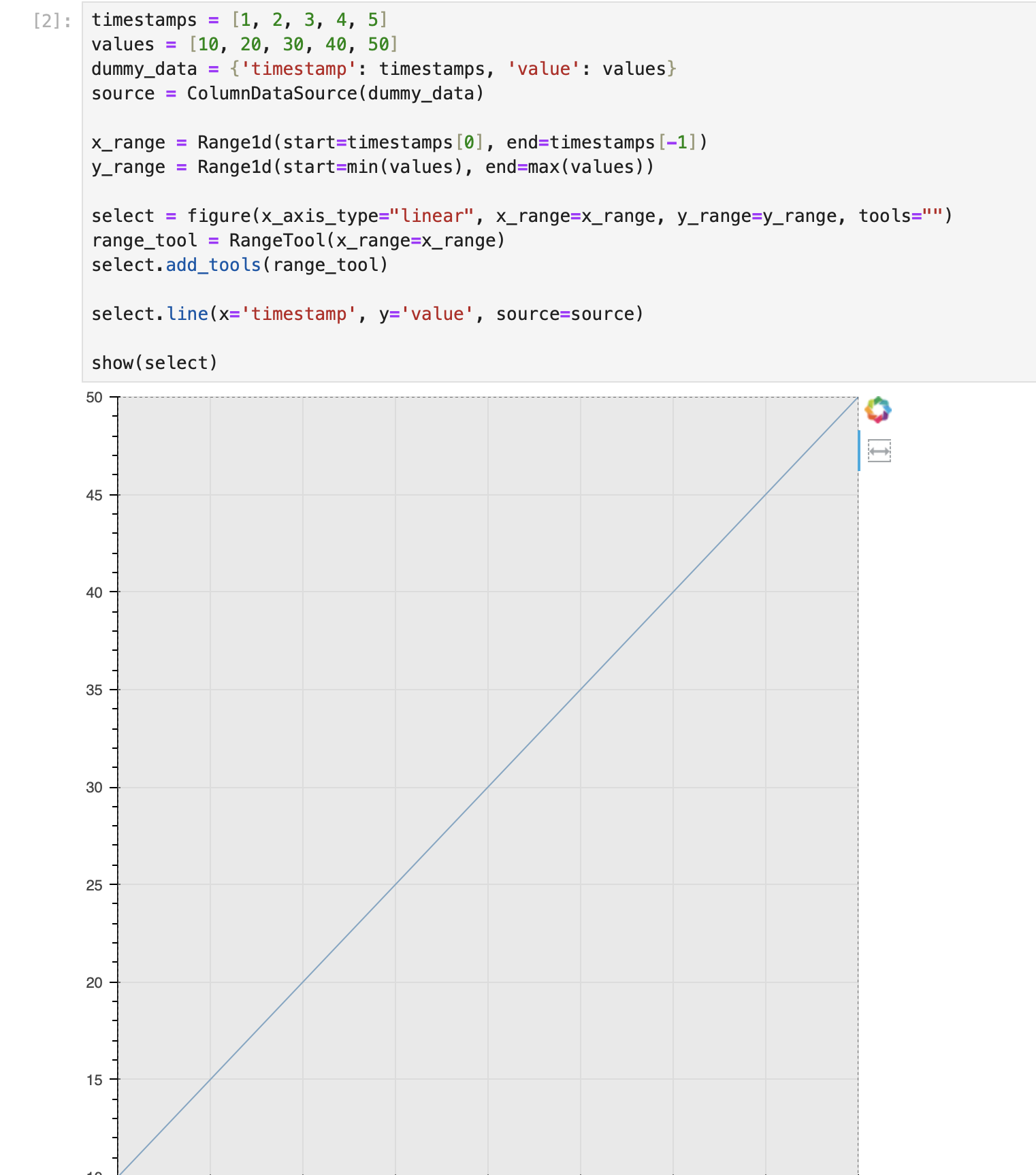

The code above generates output for me, but also behaves very badly since it is not expected usage to attach a range tool to the same plot as the configured range. Typically a range tool is added to one plot and configured with the range of another plot. (See e.g. this example).

In any case, we’d need a more exact sequence of steps to reproduce or possible a screen capture that shows exactly the sequence of steps. But my first suggestion is to construct an example that uses the range tool as intended (i.e. not “self-attached” to the same plot since you could end up with infinite range updates ping-ponging that way, as the tool updates the plot which updates the tool which updates the plot…)

Hi, hmm.
Thanks for your quick answer! Did you try run it twice?

The example above is a trimmed down version of the original cell:

p = figure(title="flow rate",
           x_axis_type="datetime", x_range=(rub128basin['timestamp'][1], rub128basin['timestamp'][10000]),
           y_axis_label='Flow rate [l/s]',
           sizing_mode="stretch_width", height=350,
            tools="xpan")

source = ColumnDataSource(rub128basin)
p.line(x="timestamp", y="value", source=source, line_width=2)

# format the x-axis tick labels as datetime strings
p.xaxis.formatter = DatetimeTickFormatter(hours="%d %B %Y", days="%Y%m%d", months="%d %B %Y", years="%d %B %Y")


# range tool
select = figure(title="Drag the middle and edges of the selection box to change the range above",
                x_axis_type="datetime",
                y_axis_type=None, y_range=p.y_range,
                sizing_mode="stretch_width", height=150,
                tools="") # tools="", toolbar_location=None, background_fill_color="#efefef"

range_tool = RangeTool(x_range=p.x_range)
range_tool.overlay.fill_color = "navy"
range_tool.overlay.fill_alpha = 0.2

select.line(x="timestamp", y="value", source=source)
select.ygrid.grid_line_color = None
select.add_tools(range_tool)

# show the results
#show(p)
show(column(p, select))

I wonder why it works on your machine, but well, it seems to be related to my setup then.

@KurtP20 you’ll need to update the new code to be complete and runnable:

NameError: name 'rub128basin' is not defined

Oh, sorry, wrong code:


from bokeh.io import output_notebook, show, output_file
from bokeh.plotting import figure
from bokeh.models import ColumnDataSource, DatetimeTickFormatter, RangeTool, Range1d
from bokeh.layouts import column
output_notebook()


timestamps = [1, 2, 3, 4, 5]
values = [10, 20, 30, 40, 50]
dummy_data = {'timestamp': timestamps, 'value': values}
source = ColumnDataSource(dummy_data)

p = figure(title="test",
           x_axis_type="datetime", x_range=(dummy_data['timestamp'][1], dummy_data['timestamp'][-1]),
           y_axis_label='Flow rate [l/s]',
           sizing_mode="stretch_width", height=350,
           tools="xpan")

p.line(x="timestamp", y="value", source=source, line_width=2)

# format the x-axis tick labels as datetime strings
p.xaxis.formatter = DatetimeTickFormatter(hours="%d %B %Y", days="%Y%m%d", months="%d %B %Y", years="%d %B %Y")


# range tool
select = figure(title="Drag the middle and edges of the selection box to change the range above",
                x_axis_type="datetime",
                y_axis_type=None, y_range=p.y_range,
                sizing_mode="stretch_width", height=150,
                tools="") # tools="", toolbar_location=None, background_fill_color="#efefef"

range_tool = RangeTool(x_range=p.x_range)
range_tool.overlay.fill_color = "navy"
range_tool.overlay.fill_alpha = 0.2

select.line(x="timestamp", y="value", source=source)
select.ygrid.grid_line_color = None
select.add_tools(range_tool)

# show the results
show(p)
show(column(p, select))

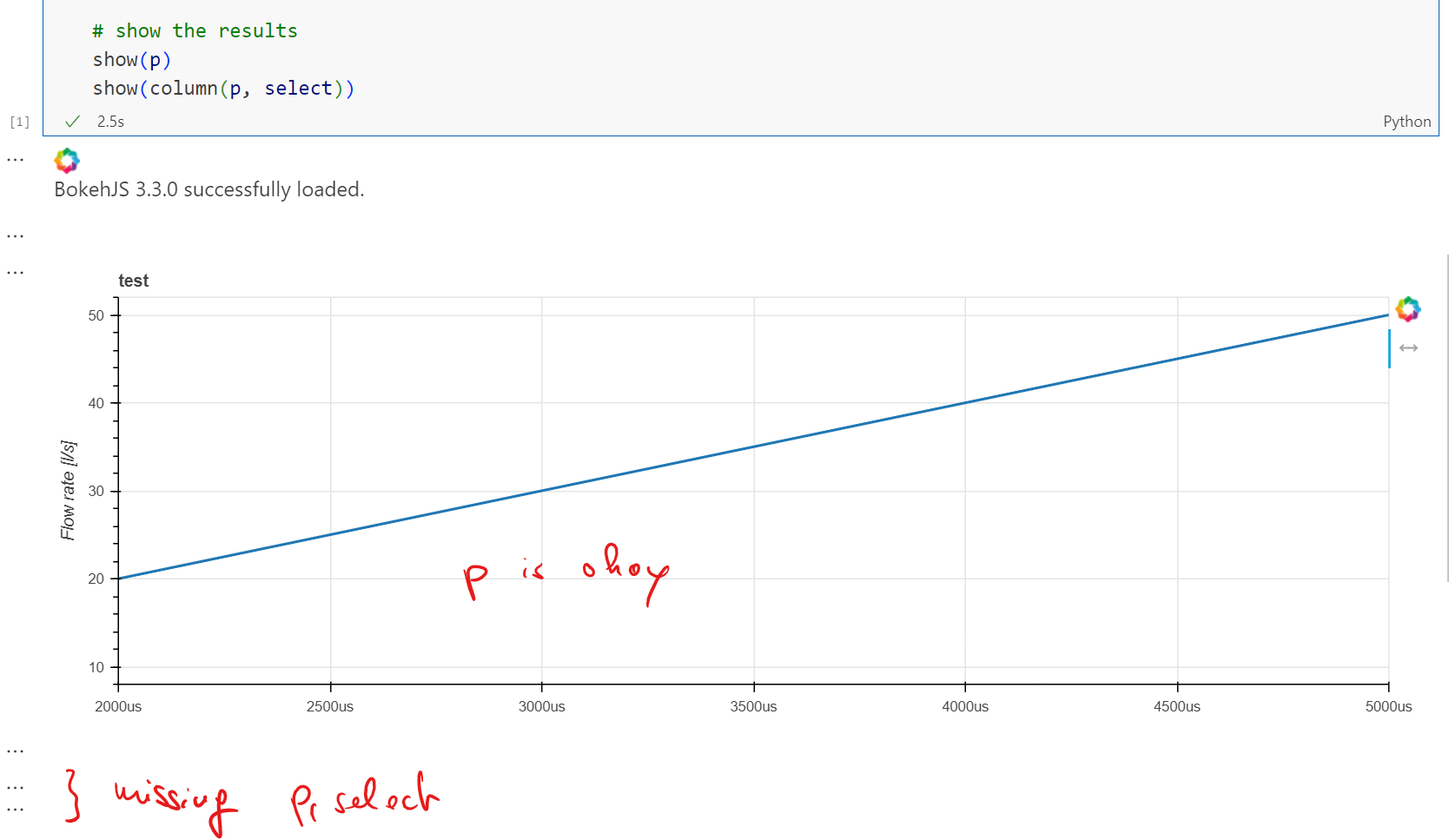

Here is a screenshot of the output of the cell:

This seems like a bug actually, please open a GitHub Issue with full details and reference this discussion as well.

Edit: note that ending a cell with two show calls:

show(p)
show(column(p, select))

is pretty unusual (to me, at least) and the issue only needs the last show to demonstrate.
