Bokeh is not picking modified version of bokeh-widget-2.2.1.js

mukeshkdangi · September 24, 2020, 5:50pm

**Bokeh auto complete is not showing results for sub string. It only shows when we type string from start. tried using modified version of bokeh-widget-2.2.1.js but for some reason bokeh is still able acess bokeh-widget.min.js

2.1. Sub String search is not working which very essential thing when we talk about search.
2,2 I added bokeh-widgets-2.1.1.js JS file in my code as :

 <script src="/bokeh_app/static/js/jquery.min.js"></script>
    **<script src="/bokeh_app/static/js/bokeh-widgets-2.1.1.js"></script>**
    <script src="/bokeh_app/static/js/jquery-ui.min.js"></script>
<script src="/bokeh_app/static/js/bokeh-2.1.1.js"></script>
<script src="/bokeh_app/static/js/bokeh-api.min.js"></script>
<script src="/bokeh_app/static/js/bokeh-gl.min.js"></script>
<script src="/bokeh_app/static/js/bokeh-tables.min.js"></script>

H owever Bokeh is accessing bokeh-widgets.min.js instead of modified **<script src="/bokeh_app/static/js/bokeh-widgets-2.1.1.js"></script>** which is not there in my project structure at all.

Bryan · September 24, 2020, 5:53pm

By default, the Bokeh server loads BokehJS resource files from inside the Python package itself, under the bokeh/server/static directory. You would need to change the relevant files inside the Python package installation.

p-himik · September 24, 2020, 5:54pm

I thought you could change it via the template, no?

mukeshkdangi · September 24, 2020, 5:55pm

p-himik that’s what i was excepting and should happen in that way. but it’s not happening.

mukeshkdangi · September 24, 2020, 6:01pm

Bryan does that mean i’ve to download the bokeh source and build the bokeh lib after my modification ? do we have any documentation for this ?

Bryan · September 24, 2020, 6:12pm

do we have any documentation for this ?

@mukeshkdangi I linked to the developers guide in the issue when I referred you here:

However, if you just want to hand-edit files to use in your own template, you can just copy them out of the package intallation, or download them from CDN, and then make your changes. You’ll just have to host them somewhere they can be accessed.

mukeshkdangi · September 24, 2020, 6:19pm

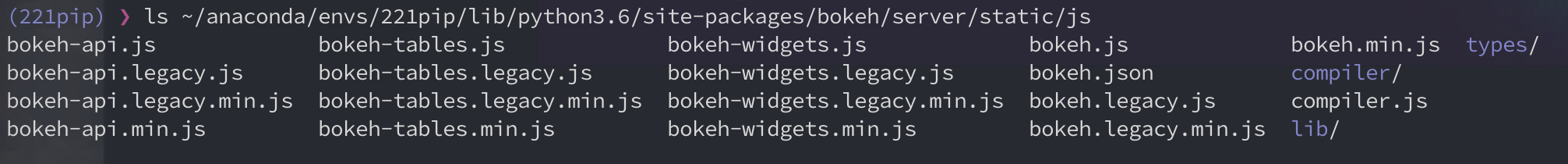

Sorry answer is bit confusing. In my question i’ve downloaded bokeh-widget.js from CDN, modified it and then added it in the jinja template file however not sure why bokeh is still using bokeh-widget.min.js instead of what i mentioned in the template file. it supposed to use bokeh-widget-2.1.1.js. i’ve attached a screenshot of network calls as well.

Bryan · September 24, 2020, 6:23pm

It’s not really possible to speculate without seeing the template.

mukeshkdangi · September 24, 2020, 6:26pm

<!-- Bootstrap core JavaScript-->
<script src="/static/vendor/jquery/jquery.min.js"></script>
<script src="/static/vendor/bootstrap/js/bootstrap.bundle.min.js"></script>

<!-- Core plugin JavaScript-->
<script src="/static/js/bokeh-2.1.1.js"></script>
<script src="/static/js/bokeh-api.min.js"></script>
<script src="/static/js/bokeh-gl.min.js"></script>
<script src="/static/js/bokeh-tables.min.js"></script>
**<script src="/static/js/bokeh-widgets-2.1.1.js"></script>**
<script src="/static/js/popper.min.js"></script>
<script src="/static/js/bootstrap.min.js"></script>

<script src="/static/vendor/jquery-easing/jquery.easing.min.js"></script>

This is what i’ve in my template. /static/js/bokeh-widgets-2.1.1.js is loaded as per network call screenshot attached in the question but not used.

Bryan · September 24, 2020, 11:30pm

@mukeshkdangi That’s still not really enough information. If you are inheriting from the default template without overriding the default resources (or copy pasting from it without removing those parts) that could explain things. Otherwise I don’t know. What is really needed (and is always advised and best) is a Minimal Reproducing Example e.g. a repo we could clone to run a minimal test case ourselves.

mukeshkdangi · September 28, 2020, 3:34pm

@Bryan can you please guide where exactly bokeh is picking min.js from ? bokeh/bokeh/server/static at branch-2.1 · bokeh/bokeh · GitHub
i can not seems to find the stuff which could help me replace default bokeh-widget.min.js to a customized bokeh-widget.2.1.1.js

Bryan · September 28, 2020, 3:55pm

@mukeshkdangi That’a the correct directory, but built BokehJS bundles are not checked in to GitHub (for a lot of reasons). They only exist in the package directories (or if you are running development, then in your local repository)

mukeshkdangi · September 28, 2020, 4:16pm

@Bryan Sorry i am unable to follow you on advise. could pls suggest steps to build bokeh which includes bokeh-widget.2.1.1.js ? python setup.py develop ?

Bryan · September 28, 2020, 4:39pm

Yes, if you follow the steps are in the Developer’s Guide and run a bokeh server app with the local development version then it will pick up whatever version of BokehJS you have built locally.

mukeshkdangi · September 29, 2020, 10:41pm

Unable to bring added JS to build folder after running build js command

:~/bokeh$ python setup.py develop --build-js
Building BokehJS… Success!

Build output:

[22:27:27] Starting ‘styles:compile’…
[22:27:27] Finished ‘styles:compile’ after 325 ms
[22:27:27] Starting ‘scripts:styles’…
[22:27:27] Finished ‘scripts:styles’ after 4 ms
[22:27:27] Starting ‘scripts:version’…
[22:27:27] Finished ‘scripts:version’ after 0 ms
[22:27:27] Starting ‘scripts:compile’…
[22:27:40] Finished ‘scripts:compile’ after 12.75 s
[22:27:40] Starting ‘scripts:bundle’…
[22:27:41] Finished ‘scripts:bundle’ after 548 ms
[22:27:41] Finished ‘lib:build’
[22:27:41] Starting ‘scripts:bundle-legacy’…
[22:27:41] Finished ‘scripts:bundle-legacy’ after 609 ms
[22:27:41] Finished ‘scripts:build’
[22:27:41] Starting ‘compiler:ts’…
[22:27:43] Finished ‘compiler:ts’ after 1.31 s
[22:27:43] Starting ‘compiler:build’…
[22:27:46] Finished ‘compiler:build’ after 2.89 s
[22:27:46] Finished ‘build’
[22:27:46] Finished ‘top-level’

Build time: 21.6 seconds

Build artifact sizes:

bokeh.js : 1719.0 KB
bokeh.min.js : 740.3 KB
bokeh-widgets.js : 647.9 KB
bokeh-widgets.min.js : 253.0 KB
bokeh-tables.js : 894.1 KB
bokeh-tables.min.js : 289.3 KB

:~/bokeh/bokehjs/build/js$ ls bokeh-api.js bokeh-api.legacy.js.map bokeh-tables.js bokeh-tables.legacy.js.map bokeh-widgets.js bokeh-widgets.legacy.js.map bokeh.js bokeh.legacy.js bokeh.legacy.min.js compiler.js lib bokeh-api.js.map bokeh-api.legacy.min.js bokeh-tables.js.map bokeh-tables.legacy.min.js bokeh-widgets.js.map bokeh-widgets.legacy.min.js bokeh.js.map bokeh.legacy.js.map bokeh.min.js compiler.js.map types bokeh-api.legacy.js bokeh-api.min.js bokeh-tables.legacy.js bokeh-tables.min.js bokeh-widgets.legacy.js bokeh-widgets.min.js bokeh.json bokeh.legacy.json compiler compiler.json

I was unable to get my new added js file to build/js. when i run either of following lines the dic /home/ubuntu/bokeh/bokeh/server/static/js gets refreshed the fresh default js files.

python setup.py develop --build-js
python setup.py develop --install-js

Bryan · September 30, 2020, 8:34pm

I was unable to get my new added js file to build/js. when i run either of following lines the dic /home/ubuntu/bokeh/bokeh/server/static/js gets refreshed the fresh default js files.

If you run --build-js that builds BokehJS resources from the TypeScript sources in bokehjs/src/lib replacing whatever is in the build dir. That’s exactly what is supposed to happen. If you want to modify BokehJS then you need to edit the actual TypeScript source files.
