I like bokeh and flowers
. It is another way to represent polar bar plots.
Here is the flower() function:
import numpy as np
from bokeh.plotting import figure, show, output_file
from bokeh.layouts import gridplot
from bokeh.models import Label
from bokeh.palettes import all_palettes
def flower(
data_values,
labels,
title="Sunflower",
palette="YlOrBr", # palette name or list of hex strings
n_layers=6,
show_data=0, # 0: labels only, 1: labels + values
fontlabel="13pt",
center_radius=0.4,
figsize=350,
color_mode="uniform", # "uniform" | "by_value"
gradient_to="#FFFFFF" # fade target for "by_value"
):
# ---------------------------
# Normalize safely
# ---------------------------
data_values = np.array(data_values)
n_petals = len(data_values)
vmin, vmax = float(data_values.min()), float(data_values.max())
normalized_vals = np.ones_like(data_values, dtype=float) if vmax == vmin \
else (data_values - vmin) / (vmax - vmin)
# ---------------------------
# Resolve palette
# ---------------------------
if isinstance(palette, str):
if palette in all_palettes:
palette = all_palettes[palette][max(all_palettes[palette].keys())]
else:
raise ValueError(f"Unknown palette '{palette}'. Try e.g. 'Viridis', 'Inferno', 'Turbo'.")
palette = list(palette)
# ---------------------------
# Color helpers
# ---------------------------
def hex_to_rgb(h):
h = h.lstrip("#")
return tuple(int(h[i:i+2], 16) for i in (0, 2, 4))
def lerp_hex(c1, c2, t):
r1, g1, b1 = hex_to_rgb(c1)
r2, g2, b2 = hex_to_rgb(c2)
r = int(r1 + (r2 - r1) * t)
g = int(g1 + (g2 - g1) * t)
b = int(b1 + (b2 - b1) * t)
return f"#{r:02x}{g:02x}{b:02x}"
def get_interpolated_color(pal, value):
"""Smooth color interpolation across the palette."""
value = max(0.0, min(1.0, float(value)))
pos = value * (len(pal) - 1)
i0 = int(np.floor(pos))
i1 = min(i0 + 1, len(pal) - 1)
t = pos - i0
return lerp_hex(pal[i0], pal[i1], t)
def gradient_from_palette(pal, steps):
"""Make a smooth gradient spanning the entire palette."""
if len(pal) == 1:
return [lerp_hex(pal[0], gradient_to, j / (steps - 1)) for j in range(steps)]
colors = []
for j in range(steps):
pos = j / (steps - 1)
colors.append(get_interpolated_color(pal, pos))
return colors
# ---------------------------
# Build layer colors
# ---------------------------
if color_mode == "uniform":
# All petals share one same layered gradient across the full palette
uniform_layers = gradient_from_palette(palette, n_layers)
else:
# by_value: each petal individually fades toward gradient_to
uniform_layers = None
# ---------------------------
# Figure
# ---------------------------
max_petal_length = normalized_vals.max()
plot_range = max_petal_length + center_radius + 2
p = figure(
width=figsize,
height=figsize,
title=title,
x_range=(-plot_range, plot_range),
y_range=(-plot_range, plot_range),
toolbar_location=None,
background_fill_color="#faf9f6",
)
p.grid.visible = False
p.axis.visible = False
p.title.text_font_size = "12pt"
p.title.text_color = "#5d4630"
p.title.align = "center"
# ---------------------------
# Petals
# ---------------------------
t = np.linspace(0, 2*np.pi, 60)
for i in range(n_petals):
angle_label = 2*np.pi * i / n_petals
angle_petal = angle_label - np.pi/2
petal_length = 0.6 + 0.9 * normalized_vals[i]
petal_width = 0.25 + 0.15 * petal_length
x_local = petal_width * np.cos(t)
y_local = petal_length * np.sin(t) + center_radius + petal_length
x_petal = x_local * np.cos(angle_petal) - y_local * np.sin(angle_petal)
y_petal = x_local * np.sin(angle_petal) + y_local * np.cos(angle_petal)
# select color layers
if color_mode == "uniform":
layers = uniform_layers
edge_color = layers[0]
else:
base = get_interpolated_color(palette, normalized_vals[i])
layers = [lerp_hex(base, gradient_to, j / (n_layers - 1))
for j in range(n_layers)]
edge_color = base
# draw
for j, col in enumerate(layers):
scale = 1 - j * (0.7 / n_layers)
alpha = 0.95 - j * 0.05
x_scaled = x_petal * scale
y_scaled = y_petal * scale
p.patch(
x_scaled, y_scaled,
color=col, alpha=alpha,
line_color=edge_color if j == 0 else col,
line_width=2 if j == 0 else 0,
)
# labels
offset = 0.3 + 0.1 * (petal_length / normalized_vals.max())
label_distance = center_radius + 2 * petal_length + offset
x_label = label_distance * np.cos(angle_label)
y_label = label_distance * np.sin(angle_label)
text = f"{labels[i]}\n{data_values[i]:.1f}" if show_data else labels[i]
p.add_layout(Label(
x=x_label, y=y_label,
text=text,
text_align="center", text_baseline="middle",
text_font_size=fontlabel, text_font_style="bold",
text_color="#654321",
))
# expand range for labels
pad = plot_range / 4
p.x_range.start = -plot_range - pad
p.x_range.end = plot_range + pad
p.y_range.start = -plot_range - pad
p.y_range.end = plot_range + pad
# ---------------------------
# Center disk + seeds
# ---------------------------
theta = np.linspace(0, 2*np.pi, 100)
p.patch(center_radius*np.cos(theta), center_radius*np.sin(theta),
color="#654321", alpha=0.95,
line_color="#4a2f1a", line_width=2)
rng = np.random.default_rng(42)
for _ in range(65):
ang = rng.uniform(0, 2*np.pi)
r = rng.uniform(0, center_radius * 0.95)
p.scatter(
[r*np.cos(ang)], [r*np.sin(ang)],
size=rng.uniform(2, 7),
color="#4a2f1a", alpha=rng.uniform(0.5, 0.9)
)
return p
Some examples:

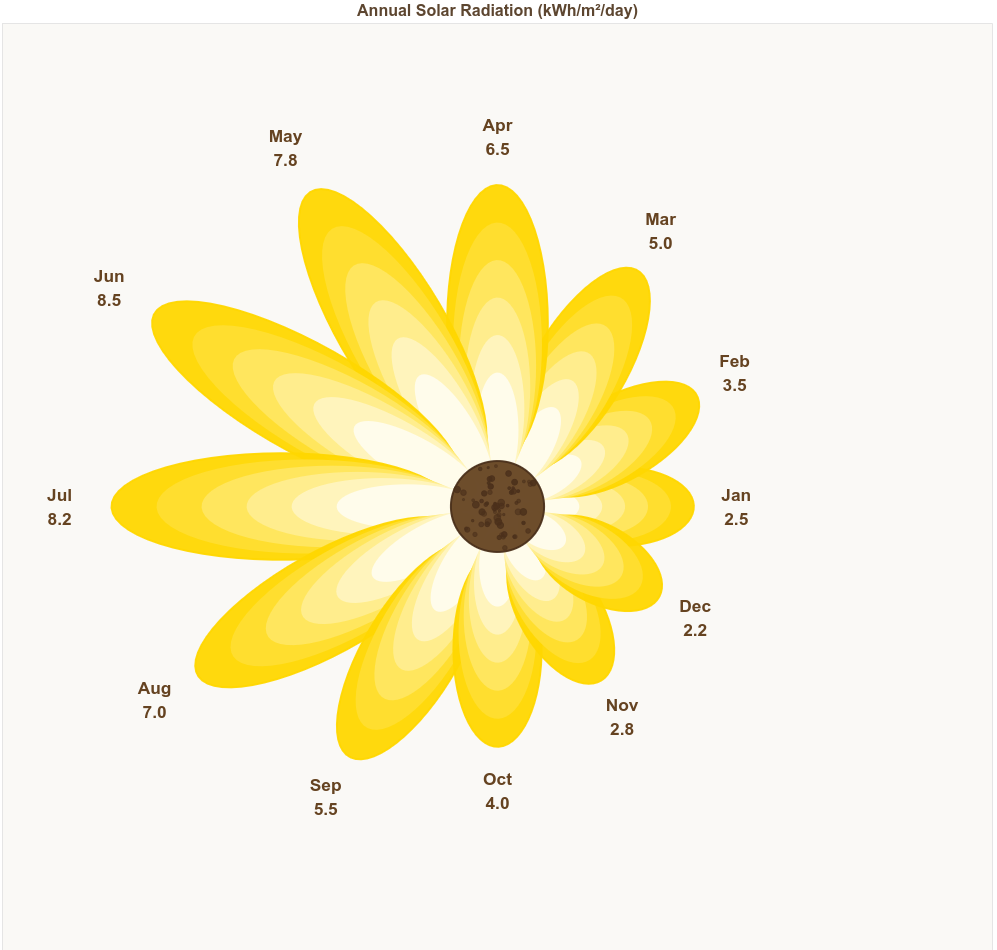

months = ['Jan','Feb','Mar','Apr','May','Jun','Jul','Aug','Sep','Oct','Nov','Dec']
solar = [2.5, 3.5, 5.0, 6.5, 7.8, 8.5, 8.2, 7.0, 5.5, 4.0, 2.8, 2.2]
p = flower(
data_values=solar,
labels=months,
title="Annual Solar Radiation (kWh/m²/day)",
palette=['#FFD700'],
show_data=1,
figsize=1000
)
show(p)

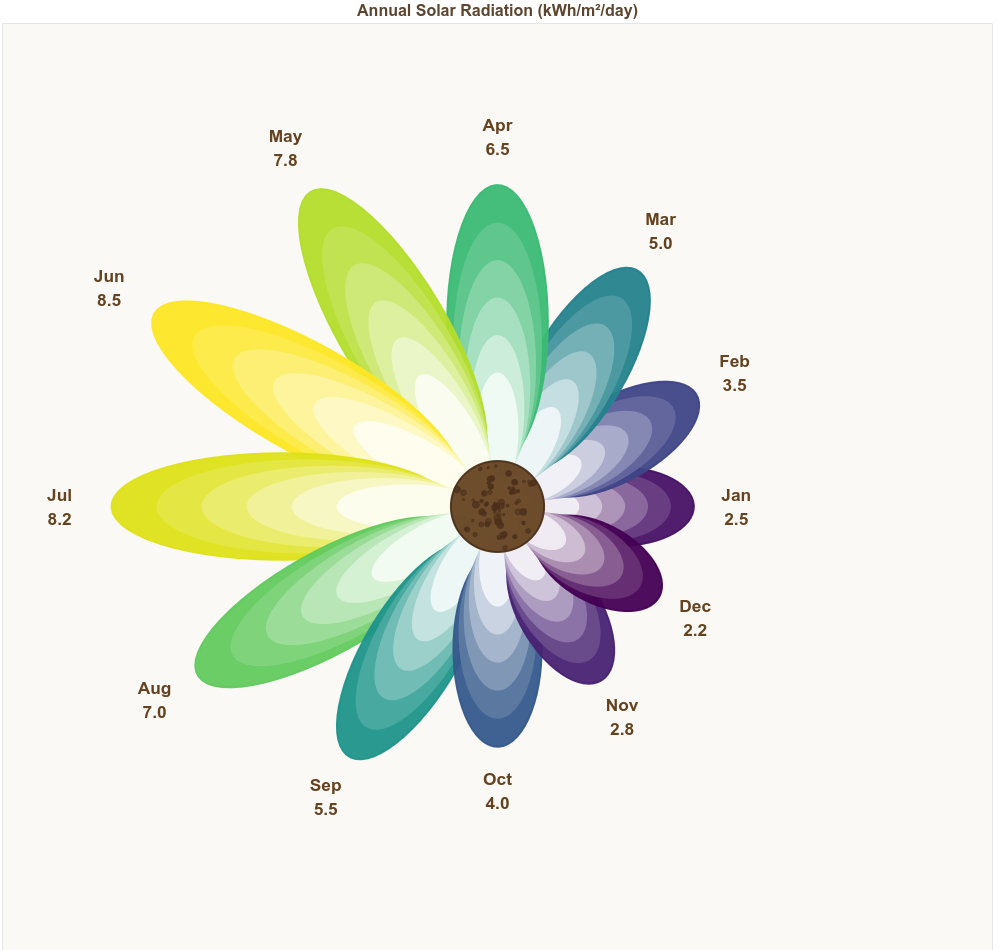

p = flower(
data_values=solar,
labels=months,
title="Annual Solar Radiation (kWh/m²/day)",
palette="Viridis",
color_mode="by_value",
figsize=1000,
show_data=1
)
show(p)
from bokeh.plotting import show, output_file

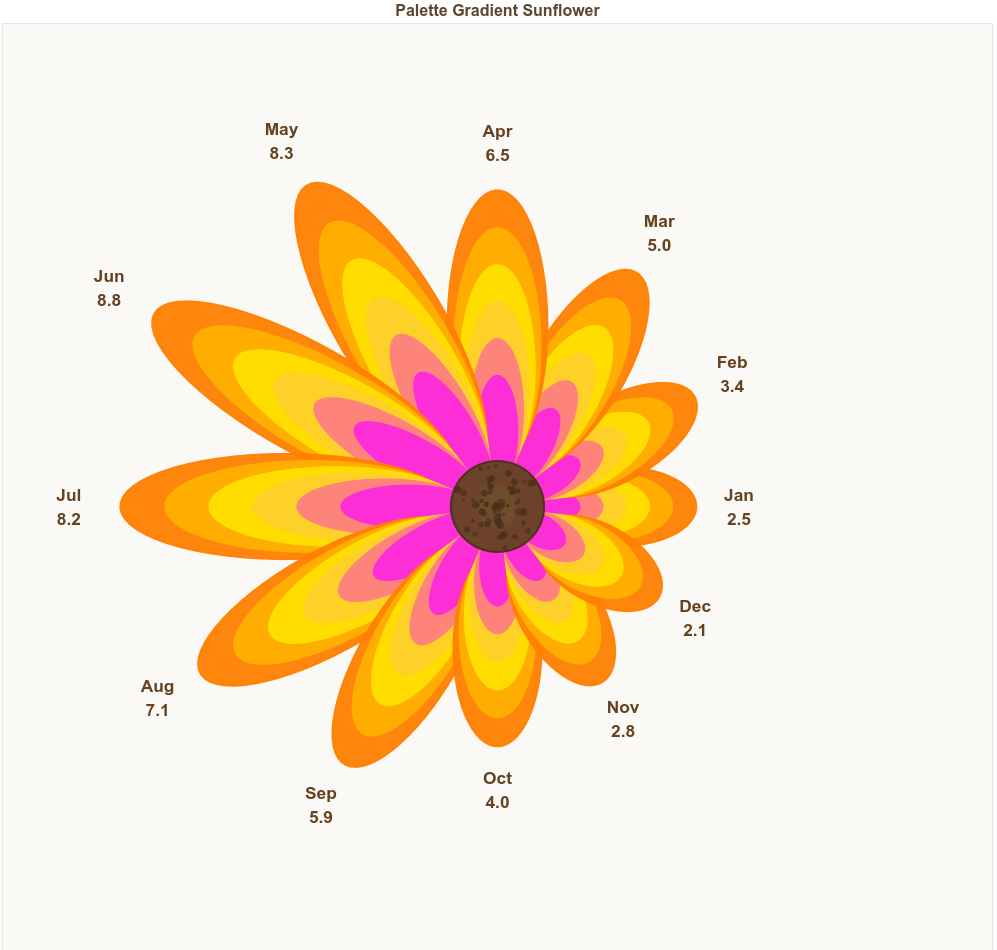

labels = ["Jan","Feb","Mar","Apr","May","Jun","Jul","Aug","Sep","Oct","Nov","Dec"]
values = [2.5, 3.4, 5.0, 6.5, 8.3, 8.8, 8.2, 7.1, 5.9, 4.0, 2.8, 2.1]
p = flower(
data_values=values,
labels=labels,
title="Palette Gradient Sunflower",
palette=[ '#FF7F00', '#FFFF00', '#fc0afc'],
show_data=1,
figsize=1000,
)
output_file("sunflower_palette_gradient.html")
show(p)

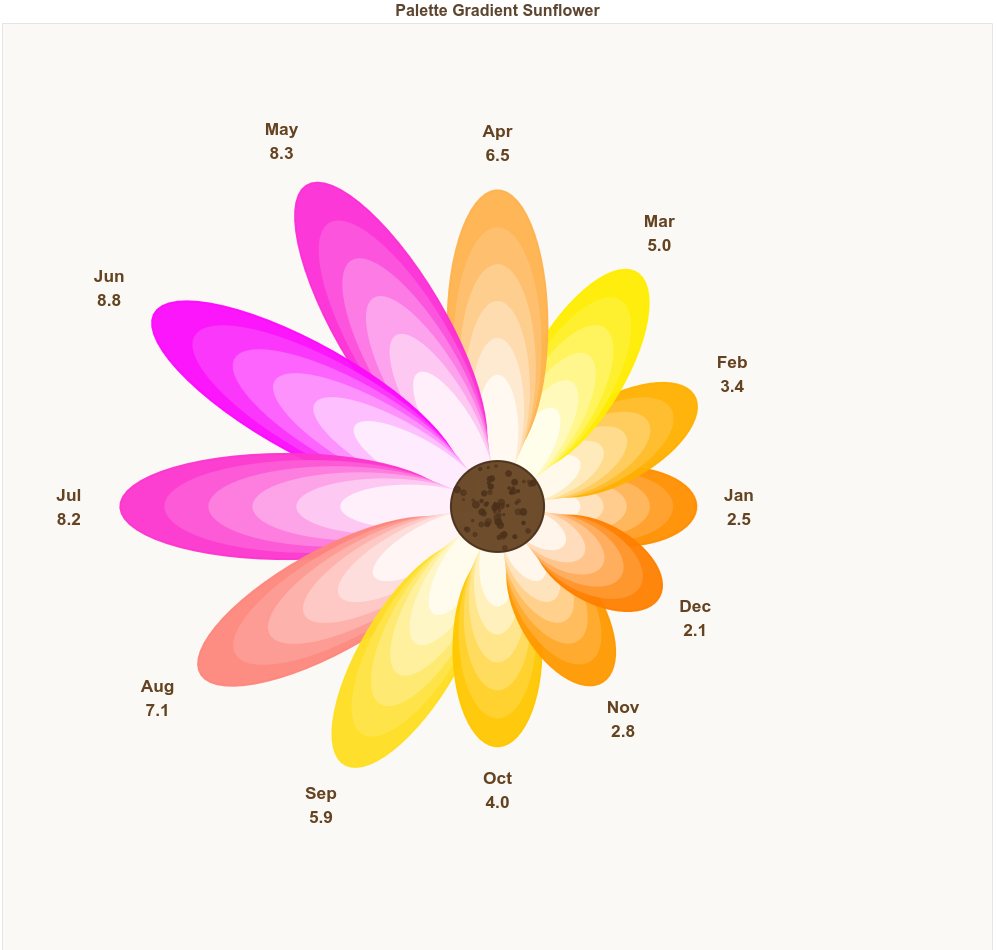

p = flower(
data_values=values,
labels=labels,
title="Palette Gradient Sunflower",
palette=[ '#FF7F00', '#FFFF00', '#fc0afc'],
show_data=1,
figsize=1000,
color_mode="by_value",
)
output_file("sunflower_palette_gradient.html")
show(p)

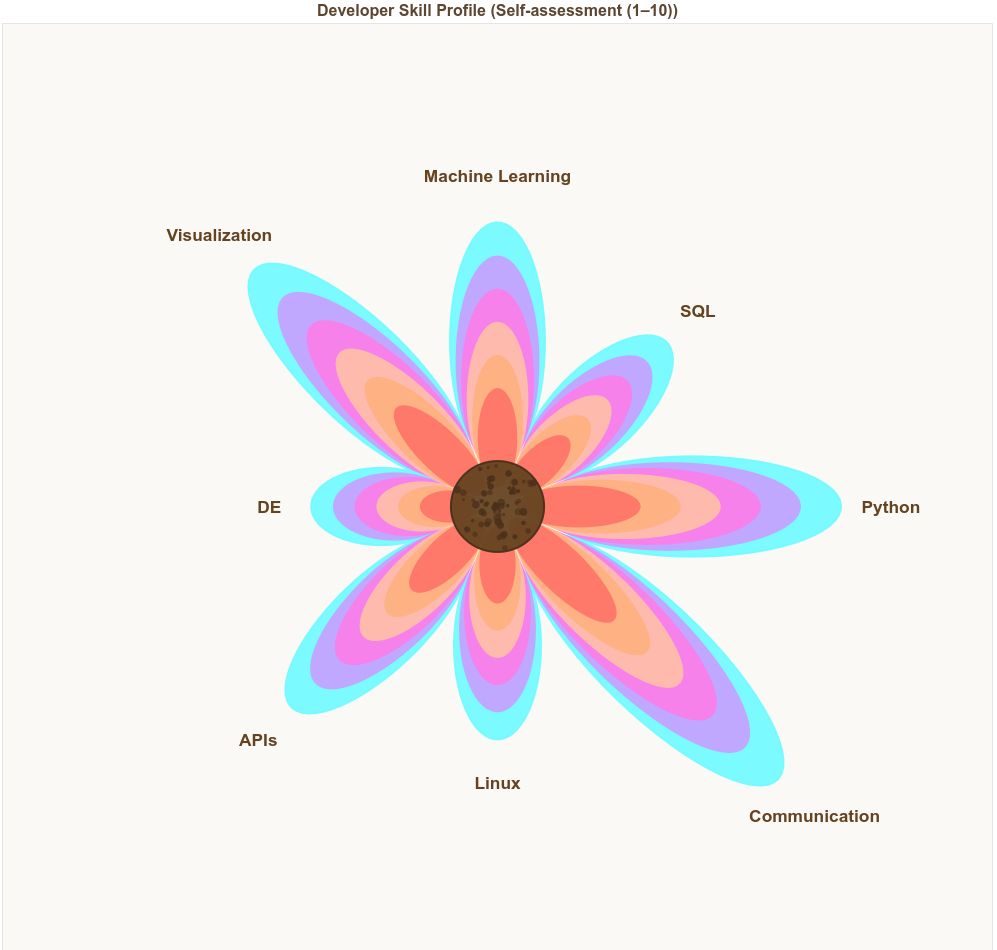

skills = ['Python', 'SQL', 'Machine Learning', 'Visualization',
'DE', 'APIs', 'Linux', 'Communication']
skill_scores = [9, 7, 8, 9, 6, 8, 7, 10]
p = flower(
data_values=skill_scores,
labels=skills,
title="Developer Skill Profile (Self-assessment (1–10))",
palette=[ '#74faff', '#ff61ff', '#ffe285', '#ff6161'],
figsize=1000
)
output_file("sunflower_skills.html")
show(p)
